I. Overview:

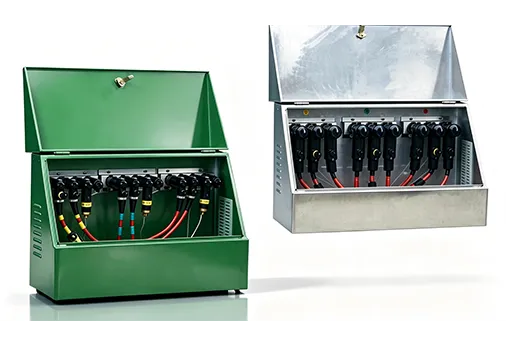

American style cable distribution boxes, with their excellent performance, standardized design, and beautiful appearance, are widely used as cable engineering equipment in cable distribution network systems. They are widely recognized in various places such as industrial parks, residential areas, densely populated urban areas, commercial centers, and high-rise buildings. It is mainly characterized by one-way door opening and horizontal multi-channel busbar, with significant advantages such as small width, flexible combination, full insulation, and full sealing. According to the rated current, it can generally be divided into two types: 600A main circuit and 200A branch circuit. The 600A main circuit adopts a screw in bolt fixed connection, while the 200A branch circuit adopts a plug-in connection and can be plugged and unplugged with load.

II. Usage environment

--Environmental temperature: Maximum temperature:+40 ° C, minimum temperature: -30 ° C

--Wind speed: equivalent to 34m/s (not greater than 700Pa)

--Humidity: The average daily relative humidity should not exceed 95%, and the average monthly relative humidity should not exceed 95%

--Seismic resistance: horizontal acceleration not exceeding 0.4m/s', vertical acceleration not exceeding 0.15m/s2

--Installation site inclination: not greater than 3 °

--Installation environment: The surrounding air should not be significantly polluted by corrosive, flammable gases, water vapor, etc., and the installation site should not experience severe vibrations
